Plumbing Cabinet Plans & Parts List

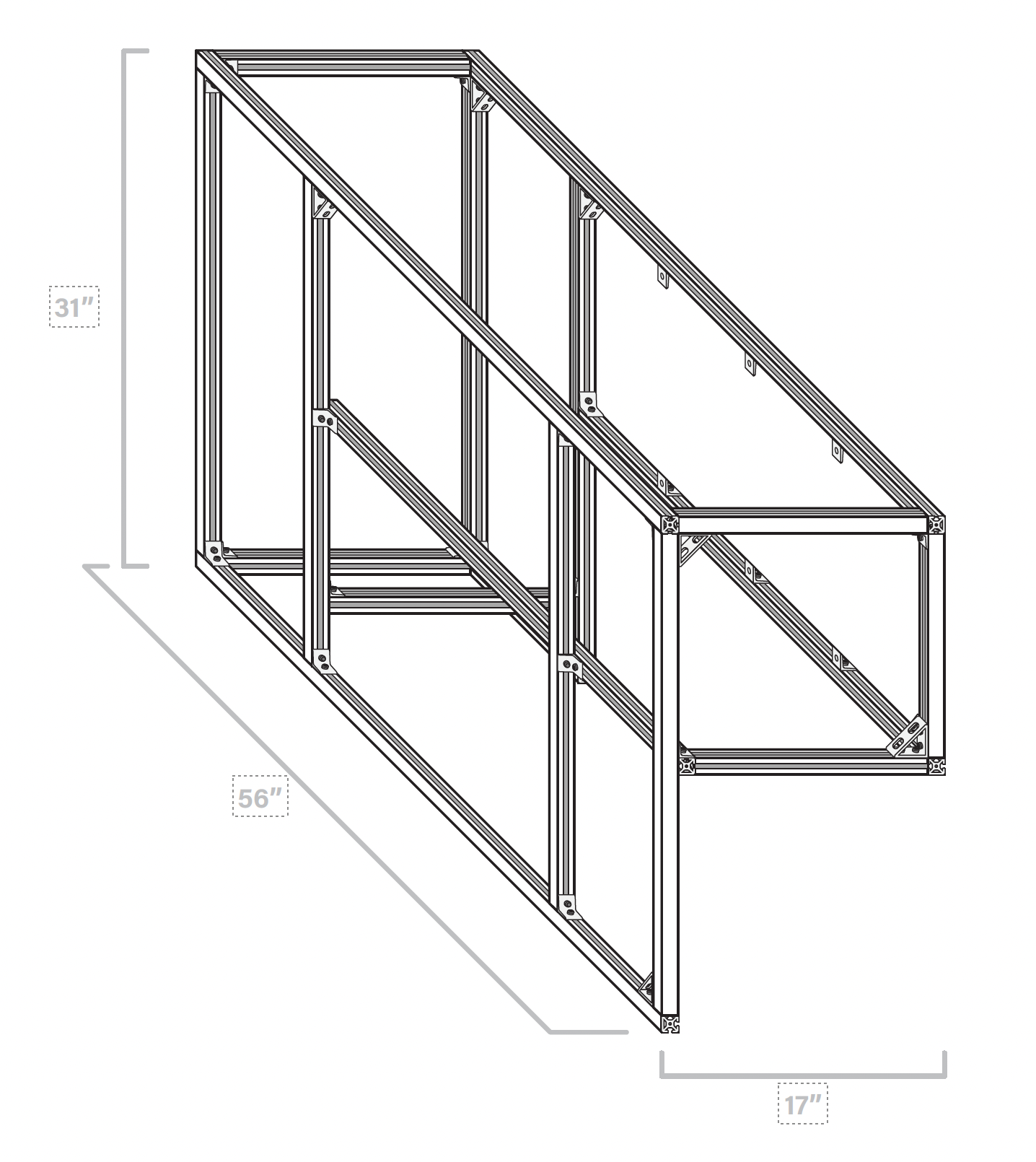

Plans for a plumbing cabinet (approx. 56" long x 17" deep x 31" tall).

Designed for the Sprinter driver side (mirror for passenger). Works on Transit. Does not fit Promaster. Fits a 36-gal over-wheel-well tank (48 x 16 x 16) plus an Isotherm Spa 15. Pairs with the electrical cabinet to form a bed platform.

This is a digital download (PDF). Download materials include detailed drawings, assembly instructions, and a parts list for pre-cut extrusions and hardware.

All sales are final. No refunds on digital products.
