Moab Layout Plans

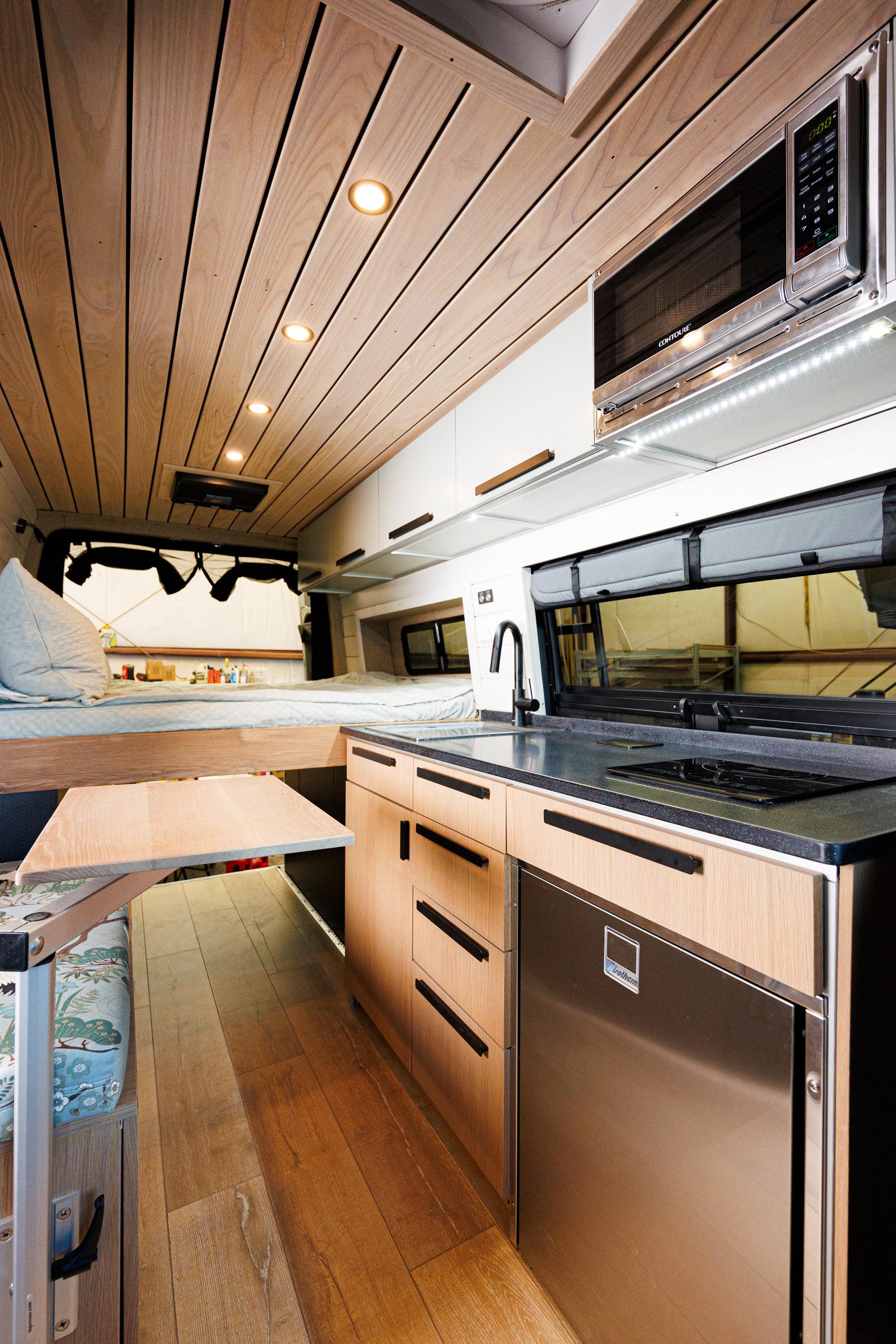

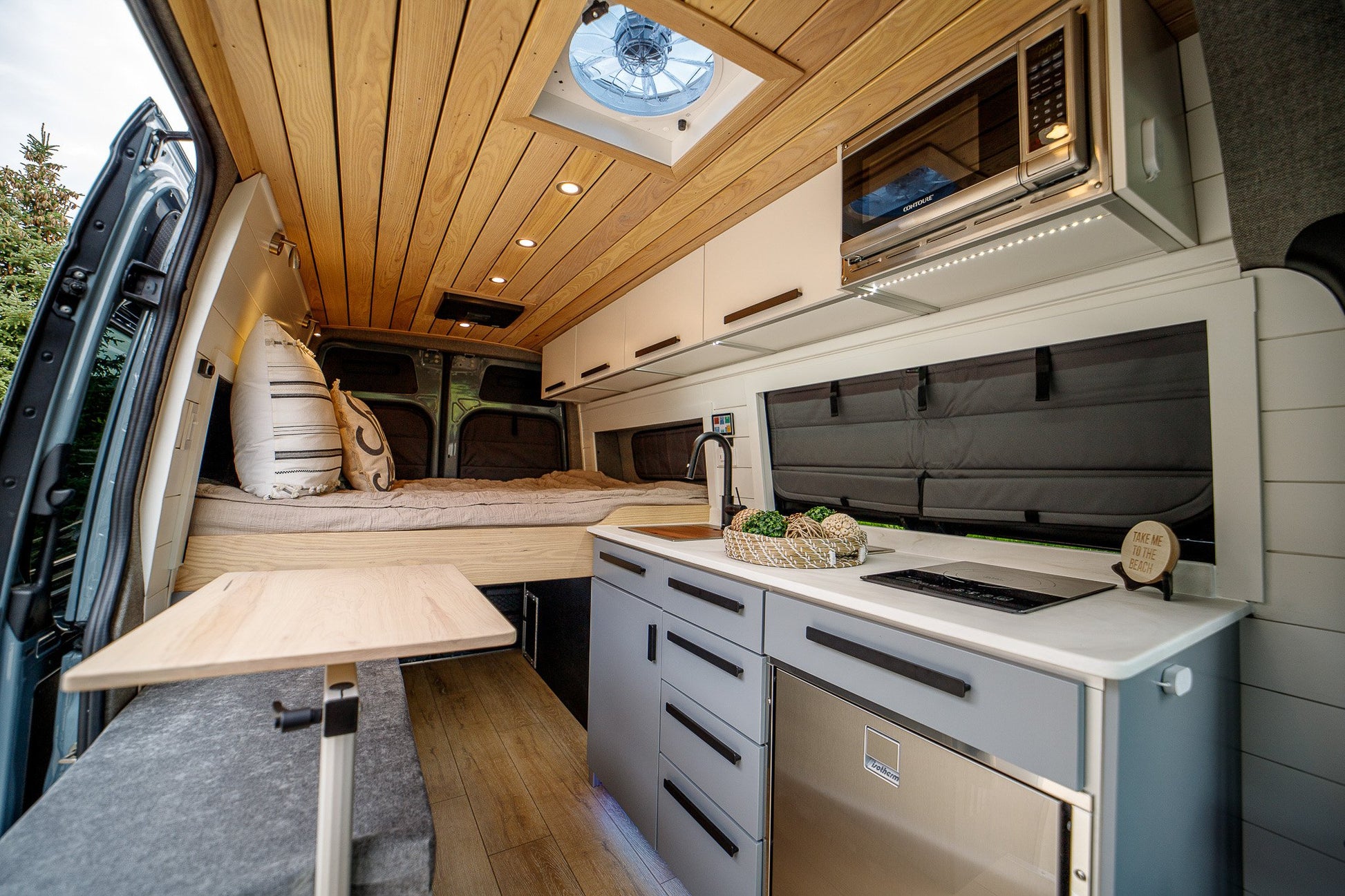

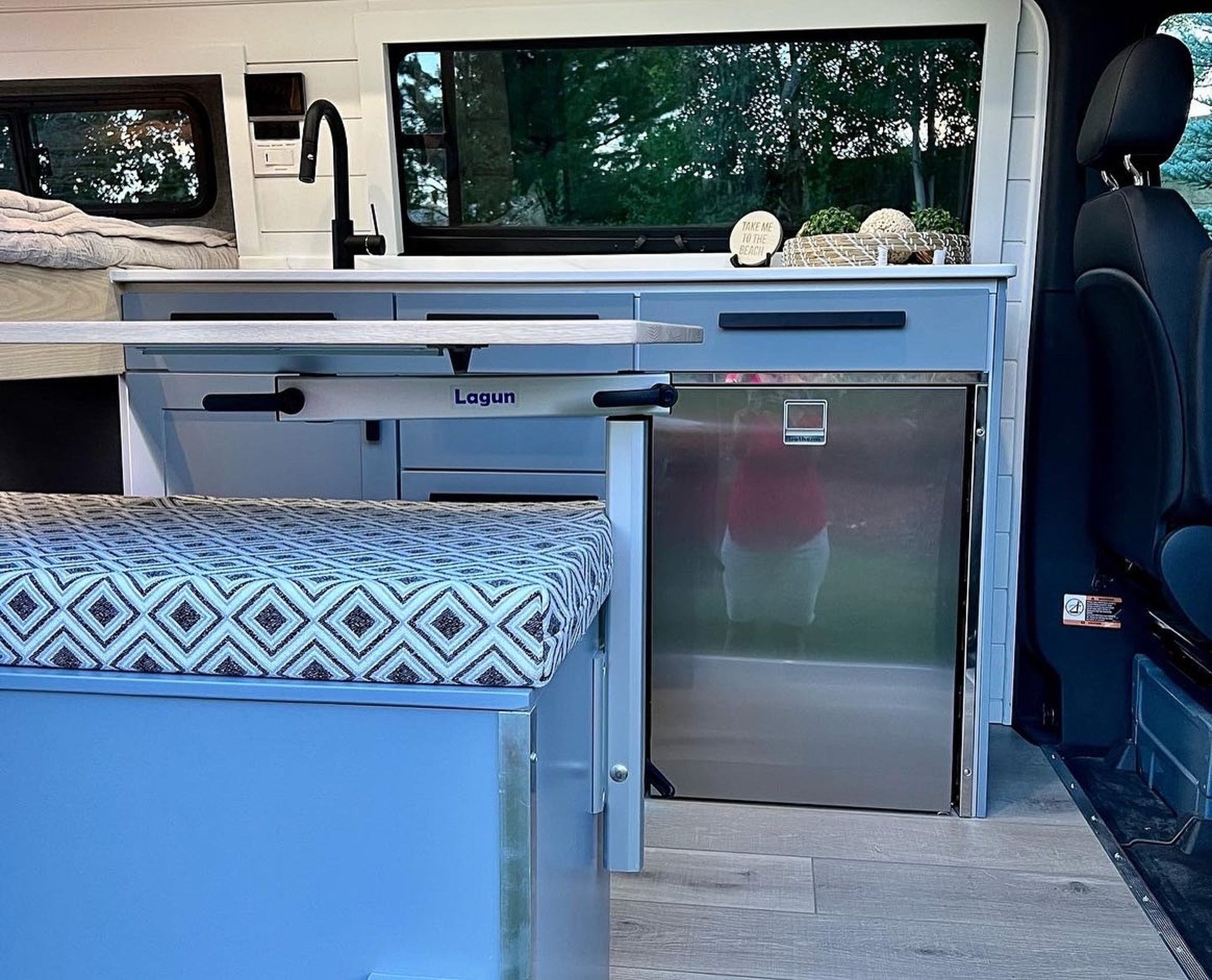

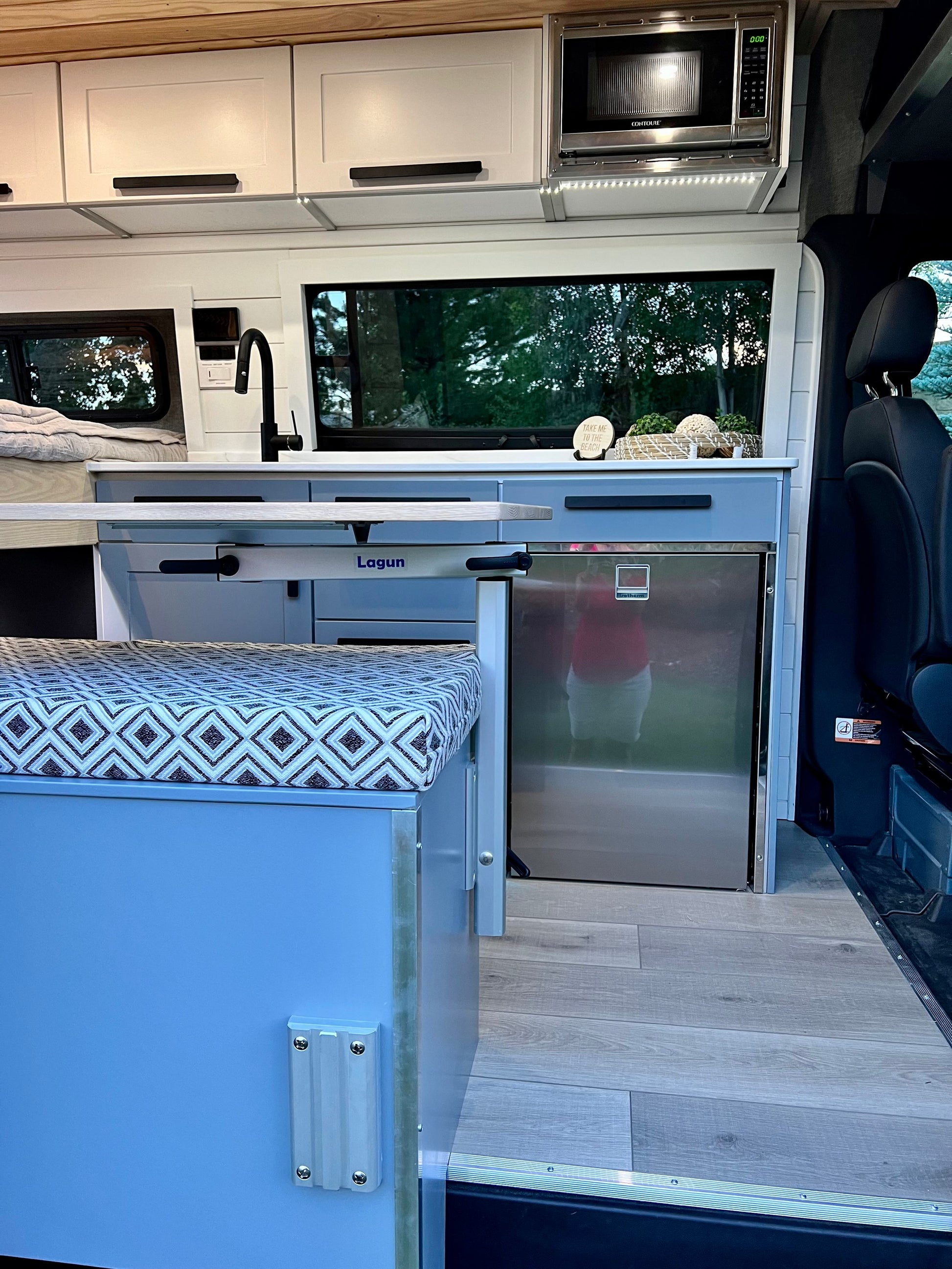

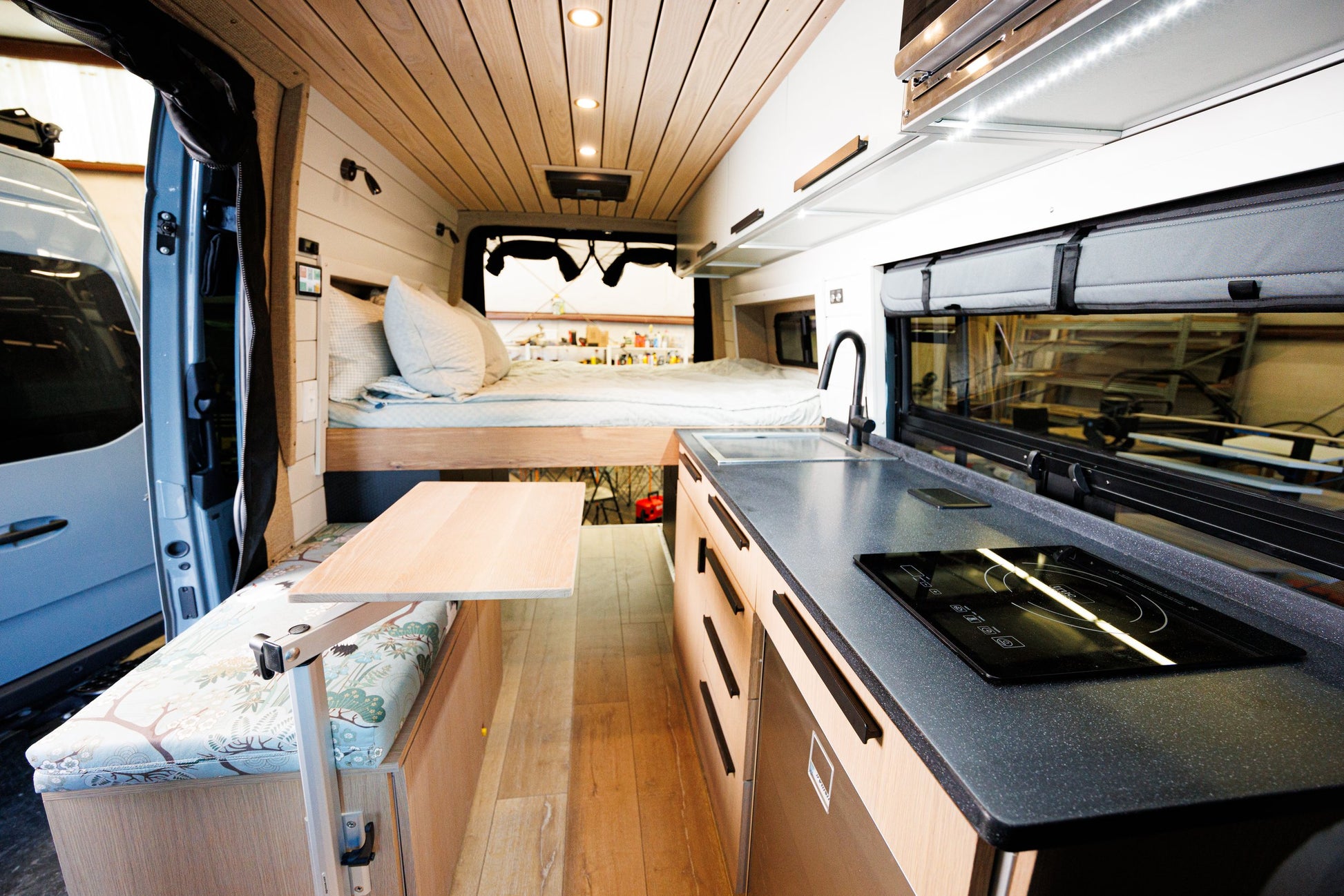

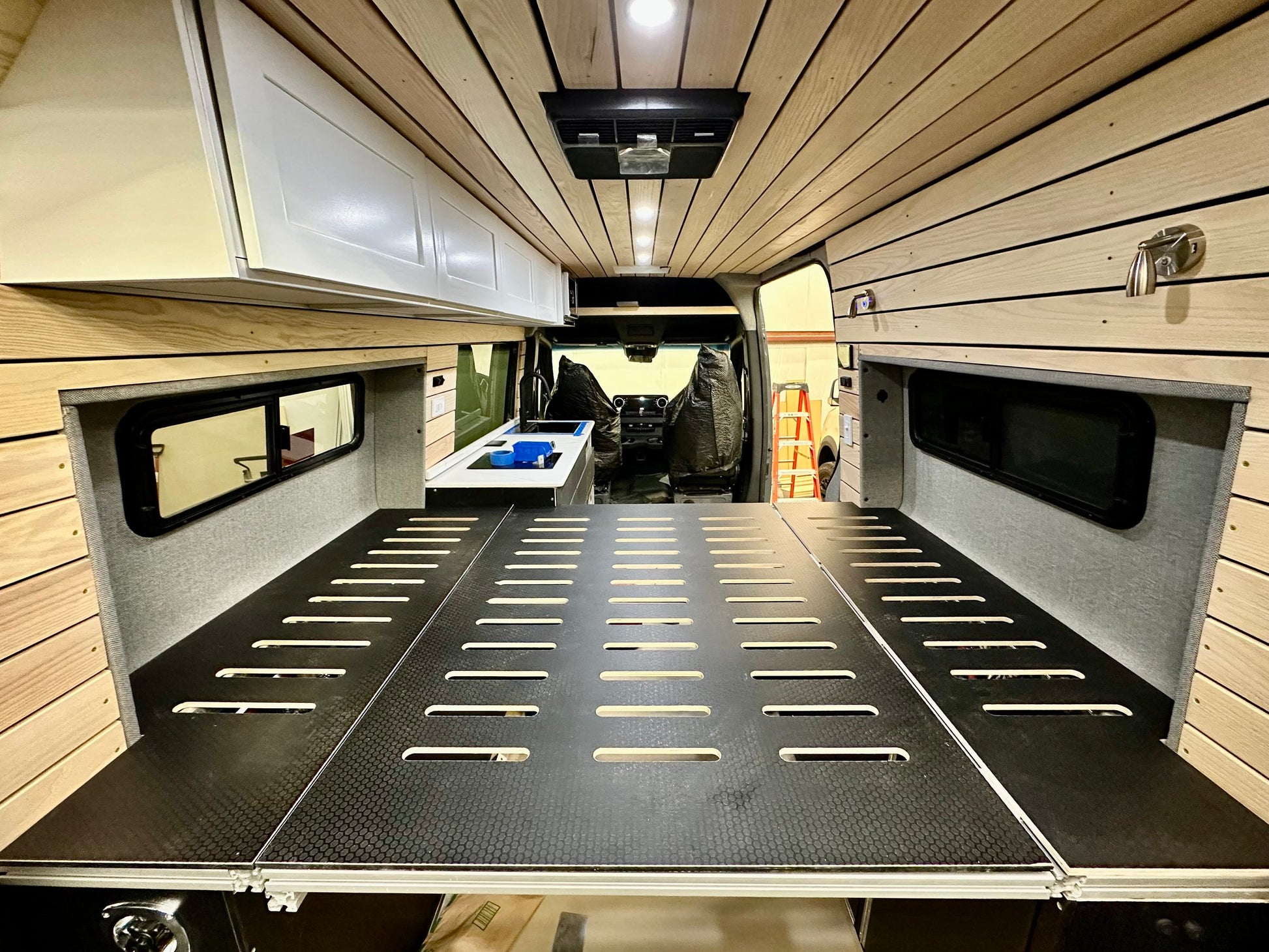

Take the guesswork out of your van layout. The Moab is our most popular floor plan for the Sprinter 144 and Transit 148 vans. This floor plan provides lots of open space, a queen size bed, 60" long galley, upper cabinets, and a bench with space for a toilet.

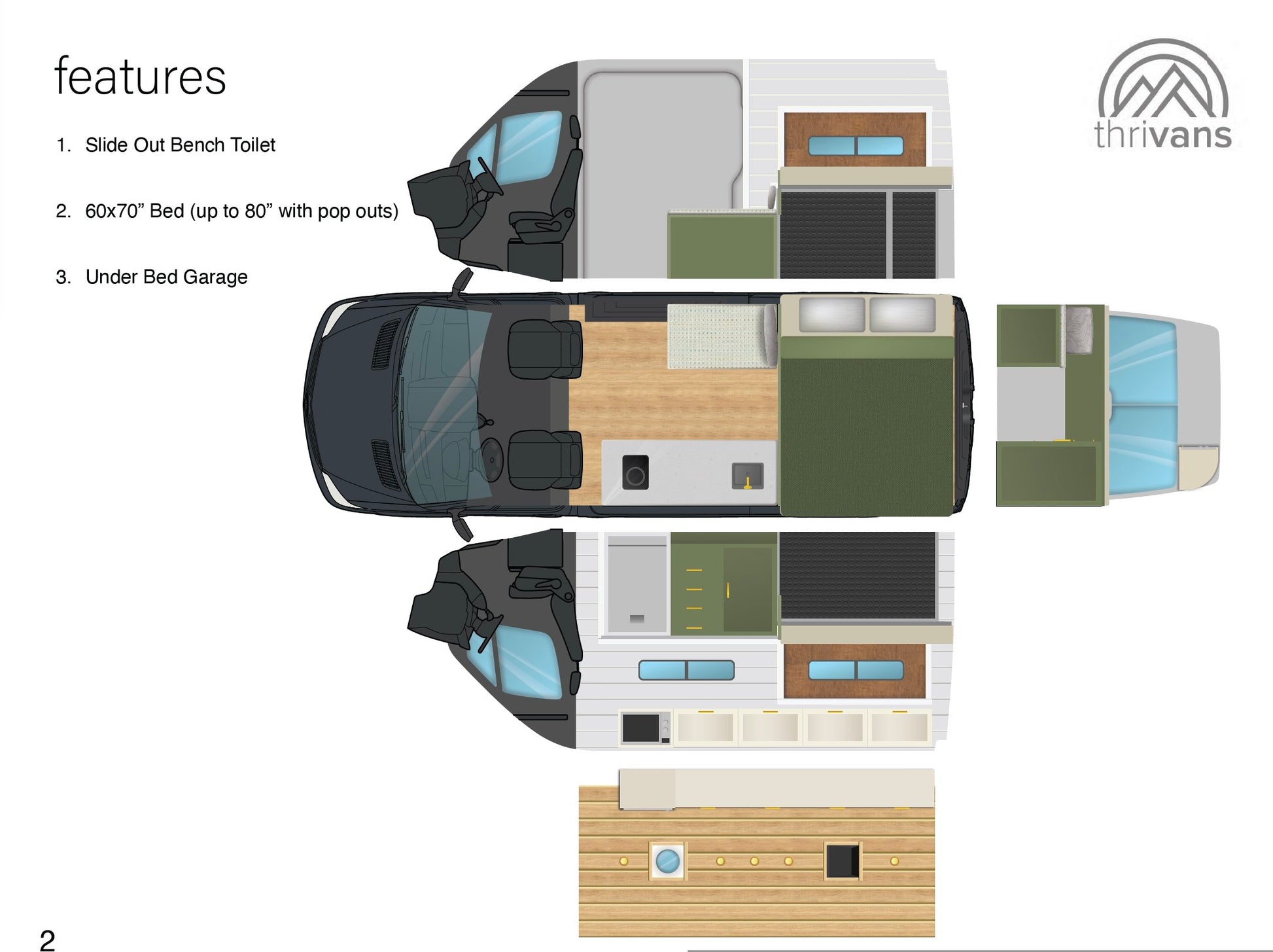

Plans include layout with cabinet dimensions and placement.

This is a digital download. All sales are final. No refunds on digital products.
