Electrical Cabinet Plans & Parts List

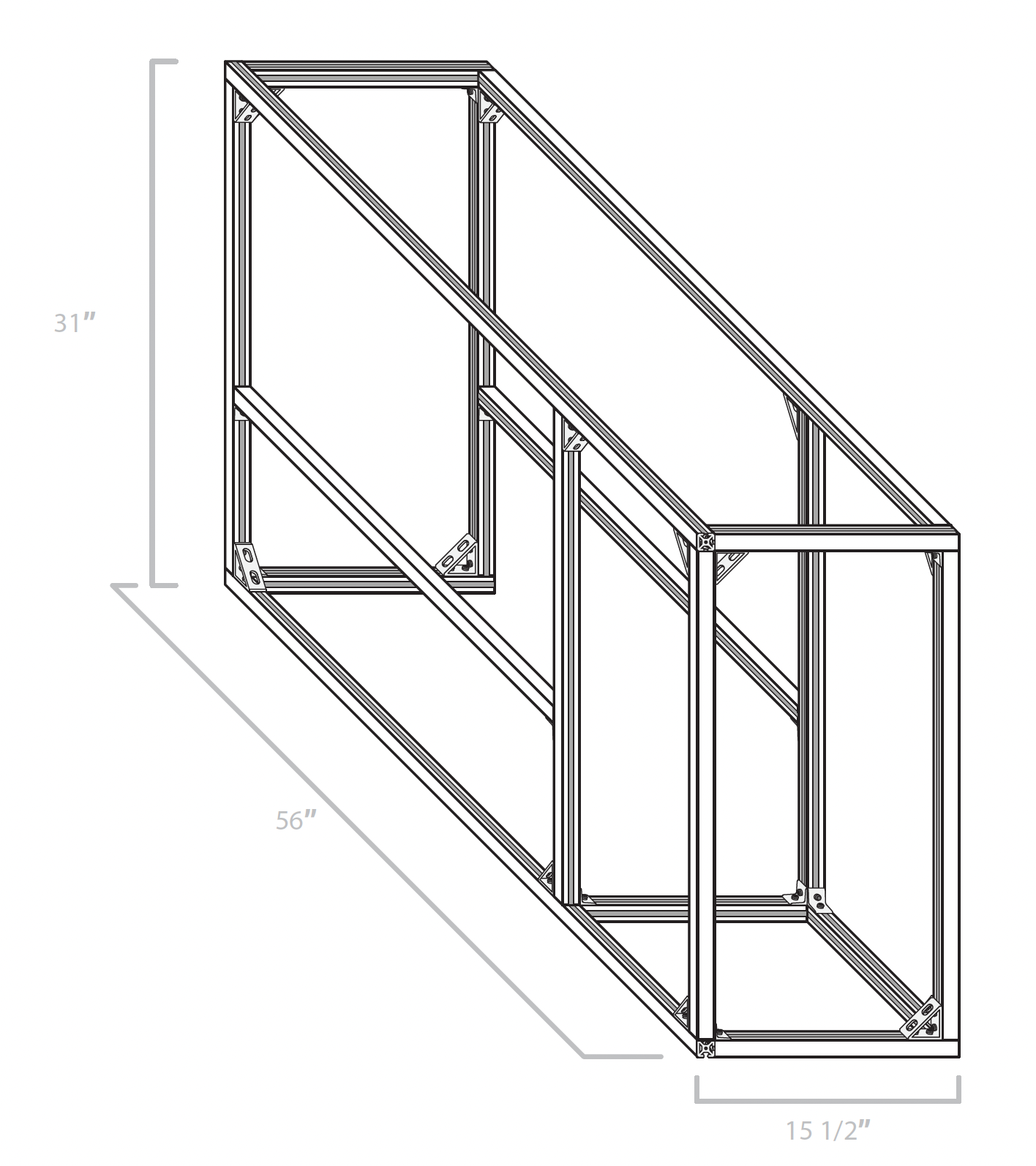

Plans for an electrical cabinet (approx. 56" long x 15.5" deep x 31" tall).

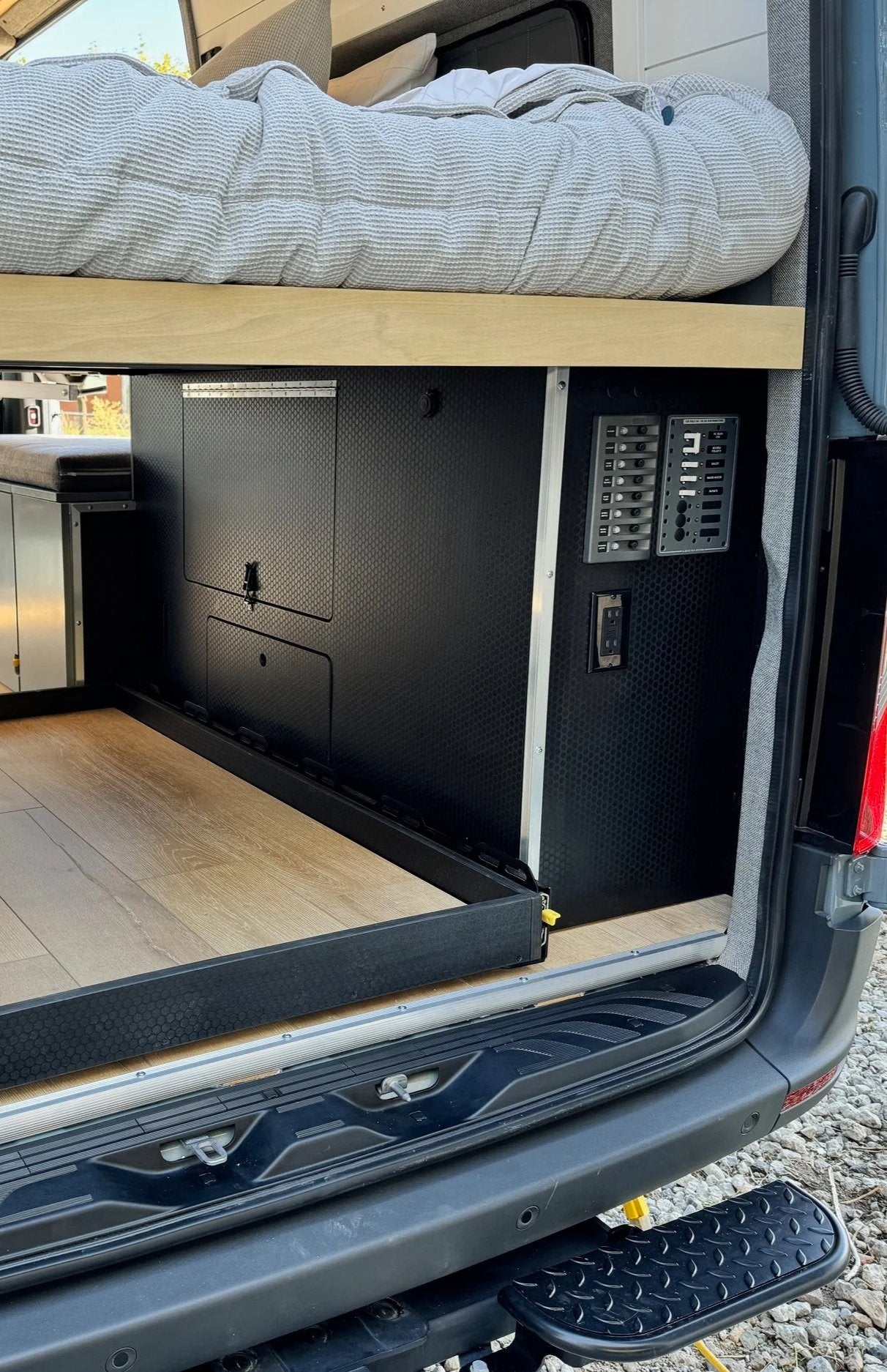

Designed for the Sprinter passenger side (mirror for driver). Works on Transit. Does not fit Promaster. Fits two Epoch Essential 300Ah batteries (or similar). Pairs with the plumbing cabinet plus four 15-series bars as a bed platform.

This is a digital download (PDF). Download materials include detailed drawings, assembly instructions, and a parts list for pre-cut extrusions and hardware.

All sales are final. No refunds on digital products.
